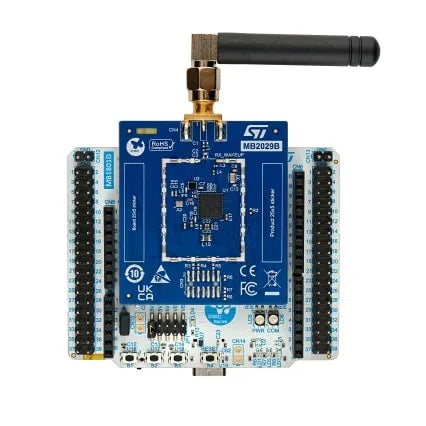

mioty® Evaluation Stack for STM32WL3x

Name: mioty® Evaluation Stack for STM32WL3x
Brand: LZE GmbH
Availability: InStock

Produktsegment: Early Access (*)

This product is reserved for professional (b2b) customers. Please open a business account to buy this product or request a quote.

€0,00 EUR

Sale Sold out

Taxes included. Shipping calculated at checkout.

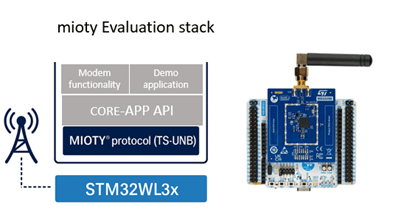

mioty Stack for STM32WL3x – Evaluation Package

This package provides a fully functional mioty stack for STMicroelectronics' STM32WL3x microcontroller line, designed for evaluation and rapid prototyping.

Included:

Statically linkable binary library
10 preconfigured binaries with unique EUIs for quick PoC network setup
Comprehensive documentation with practical examples

Note: This stack is intended for evaluation purposes only. Commercial use is not permitted.

Features

Full support of STM32WL3x Arm Cortex®-MO+ core architecture
Pre-integrated mioty protocol stack (TS-UNB)
Sub-GHz radio support
Ultra-low-power design optimized for battery-powered applications
Flexible Modem and bidirectional Demo application

Applications

Technical specification

Downlink Sensitivity: -134 dBm
On-air Time: 19.5 ms (per sub-packet)
Current Consumption
1.4 pA (idle: deep stop with ram retention and low
speed clock running)
22.5 mA (tx @14 dBm power output)
7.2 mA (rxincl. mioty stack execution)

Stack Size: 217 Kbytes
Profiles: EU868, EU868W, US915W,IN866
