3D magnetic field sensing with HallinOne®

3D Hall sensors based on Fraunhofer IIS HallinOne® technology: as a chip, on a breakout board and as the HallinSight® magnetic field camera. We support you with selection and integration.

Selection guide

Which sensor fits your measurement task?

All three sensor ICs measure the magnetic field in three dimensions and have an SPI interface. They differ in the number of sensing points, in measurement range and in how much the chip computes itself.

  • FH3D02 · angle and positionDual 3D Hall sensor with 2.5 mm pitch. Calculates linear position or angle on chip, output via SPI or PWM. Default measurement range 70 mT.
  • FH3D12 · wide field rangeDual 3D Hall sensor with 2 mm pitch. Measurement range configurable from approx. 10 mT to approx. 1.5 T, measurement rate up to 20 kHz at 12 bit. Integrated coils for calibration.
  • FH3D04 · up to 6DQuad 3D Hall sensor with 1.5 mm pitch in a 2.5 × 2.5 mm package. For 3D up to 6D position measurement, for example in joysticks or gimbals. Integrated coils for calibration.

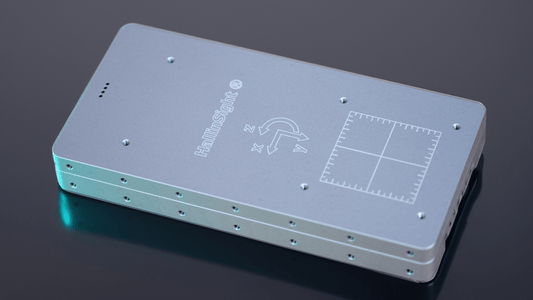

  • HallinSight® · mapping fields3D magnetic field camera as single probe, line array or plane array, with measurement ranges from 100 mT to 2,000 mT.

HallinOne® in brief

How HallinOne® measures the magnetic field

A HallinOne® sensor captures all three components of the magnetic field at one point: with the pure Hall effect, on a planar IC and without magnetizable materials. This also removes their magnetic hysteresis.

Two or four of these 3D sensing points sit on one chip. Their difference gives the field gradient; homogeneous stray fields cancel out. FH3D12 and FH3D04 additionally include coils that allow calibration without an external magnetic setup.

More on the technology at Fraunhofer IIS

  • More than 50 milliondevices with integrated HallinOne® sensors.
  • 3 axesper sensing point, two or four sensing points per chip.
  • Up to 6Dposition measurement with the FH3D04.
  • Approx. 10 mT to 1.5 Tconfigurable measurement range of FH3D12 and FH3D04.

Film

HallinOne® in two minutes

The film shows the measuring principle, calibration via integrated coils and applications from industry to medical technology.

Ordering

For companies and research institutions

The sensor ICs are reserved for commercial customers; you need a business account to order. HallinSight® is an early access product. The notes explain what this means for ordering, use and liability.

Read the notes on early access products

FAQ

Frequently asked questions about HallinOne®

What is HallinOne®?

HallinOne® is a 3D Hall sensor technology from the Fraunhofer Institute for Integrated Circuits IIS. The sensors measure all three components of the magnetic field with the pure Hall effect on a planar IC, without magnetizable materials.

How do FH3D02, FH3D12 and FH3D04 differ?

The FH3D02 has two 3D sensing points and calculates linear position or angle on chip. The FH3D12 also has two sensing points and a configurable measurement range from approx. 10 mT to approx. 1.5 T. The FH3D04 has four sensing points and is suited to 3D up to 6D position measurement. FH3D12 and FH3D04 include coils for calibration.

Are the sensors available on a board?

Yes. FH3D02, FH3D12 and FH3D04 are available as a single chip and as a chip on a breakout board.

Where can I find data sheets?

The product pages of the sensor ICs provide the data sheet and fact sheet as PDF: FH3D02, FH3D12 and FH3D04.

Do the sensors need calibration?

In the FH3D02, offset and sensitivity are compensated over temperature. FH3D12 and FH3D04 have integrated coils, which allow magnetic calibration without an external magnetic setup.

Are customer-specific variants possible?

For the FH3D02, customer-specific programming of measurement range, measurement rate and measurement sequence is feasible on request. Contact us.

Who can order?

The sensor ICs are reserved for commercial customers. You need a business account in the shop to order.

What does early access mean for HallinSight®?

HallinSight® is offered as an early access product. The conditions are set out in the notes on early access products.

Planning your own sensor application?

We support you with selection, samples and integration.
